Unbound CASP Management API v1.0.1811

Scroll down for code samples, example requests and responses. Select a language for code samples from the tabs above or the mobile navigation menu.

Unbound’s Crypto Asset Security Platform ("CASP") provides the advanced technology and the architecture to secure crypto asset transactions. The crypto asset solution contains the CASP service and different end points (humans or BOTs).

CASP provides the framework to create Accounts, which hold multiple Vaults where secrets are stored. Access control is managed by the Quorum Policy for all of the Participants.

The CASP system manages the following entities:

• Accounts - a container for a set of vaults and participants that manage these vaults.
• Participants - a human within the account or a BOT taking part in cryptoasset transactions. Each participant owns a share of the cryptographic material that is part of the different transactions.
• Vaults - a secure container for the cryptographic material used to protect a crypto asset (i.e. the seed or private key).
• Quorum vault - shares the responsibility of executing a transaction between many different participants in a structure defined by the vault policy.

CASP is a collaboration service, where different participants collaborate to perform crypto asset transactions. As such, it has inherent support for asynchronous operation. When an operation is triggered, it is located in a queue and completed when the relevant set of participants complete their part. CASP supports triggering asynchronous operations, notifying the relevant participants on required actions, and checking the status of operations.

For more information about the CASP SDK, see:

• Unbound CASP User Guide
• Unbound CASP Participant SDK
• Unbound CASP Sample Apps

Email: Unbound Tech Support Web: Unbound Tech Support

Getting Started

Integrating CASP services within your server application, such as an exchange, a custodian service, or any other application managing crypto assets, is accomplished with the CASP REST API.

This reference includes and operations for completing the full CASP life cycle, including:

1. Creating accounts
2. Adding participants to an account
3. Creating vaults
4. Depositing money into vaults
5. Withdrawing money from vaults
6. Managing keychains

See the Unbound CASP User Guide for details about installing CASP.

REST API Requests

The API prefix for all CASP REST endpoints is:

https://<casp-server>/<comp>/api/v1.0/

The value for <comp> is casp for CASP requests, or the name of the coin type, such as btc.

Supported Coins

CASP provides built-in support for different coin types. A coin is a specific crypto currency that has its own associated ledger where transactions are recorded. CASP supports the following coin types:

• btc - bitcoin
• btctest - bitcoin Testnet3
• eth - Ethereum
• ethtest - Ethereum testnet
• ERC-20 - Ethereum blockchain tokens that are compliant with ERC-20. A list of supported tokens can be found here.
• stellar - Stellar
• stellartest - Stellar testnet

New coin types are continually being added. If you need to support a different coin type, see the following section on BYOW.

Bring Your Own Wallet (BYOW)

CASP supports two types of implementations for handling different types of coins. CASP provides built-in support for some types of ledgers, as described in the previous section.

CASP also provides the necessary APIs so that you can bring your own wallet (BYOW), meaning that you can use whatever ledger you have, and control the vault and key operations with CASP. Using BYOW, you can create an implementation that can handle any coin type, as well as any special operations that you use to communicate with your ledger and for ledger processing.

You may want to use BYOW when using one of the built-in coin types, but need other features, such as using your own nodes and address caching. You may already have management in your application for one of the built-in coin types and want to use CASP for key management and protection. BYOW provides the flexibility to be used with any blockchain application.

In these scenarios CASP handles key management, protection and signing operations based on the quorum specification. It is your responsibility to manage:

1. Blockchain communication
2. Building transactions
3. Balance management and retrieval

Setup the basic system components, accounts and participants, using the CASP APIs. Once the relevant participants exists, you can start creating your own vaults.

Participant Flows

Participants can be added to vaults, deactivated, and reactivated. The associated flow for each of these actions is shown in the following figures.

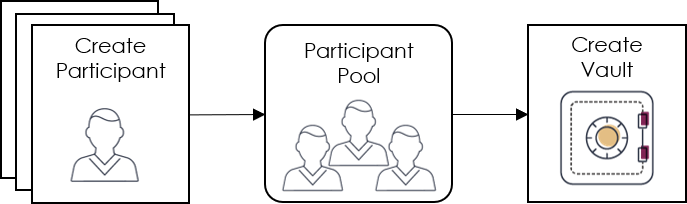

Vault Creation

• Step 1: Create participants. You need enough participants to implement the quorum policy.
• Step 2: Create a vault. During vault creation, participants are assigned to the relevant quorum groups.

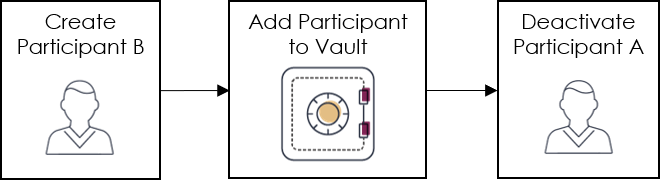

Add/Replace a Participant

• Step 1: Create a new participant (Participant B).
• Step 2: Add this participant to the vault.
• Step 3: If you are replacing a participant (Participant A), you can now deactivate that participant.

Note: You cannot deactivate a participant if it violates the quorum policy. For example, if the quorum requires 2 participants for approval, and there are only 2 participants, you cannot remove either one. First, add a new participant (for a total of 3) and then one can be removed.

Note: Participants can be deactivated either from a specific vault or globally from all vaults.

Deactivate/Reactivate a Participant

A vault member can be deactivated as long as there are enough remaining participants for the quorum.

You may need to reactivate a participant in this case:

• Case 1: The participant lost or replaced their cellphone and needs to be re-credentialed.

Error Handling

Responses are formatted in the standard REST format, with a status field showing an error code and an error field with a text description of the error. The possible error codes are described with each API.

For example, here is an apikey request:

https://<casp-server>/casp/api/v1.0/mng/auth/apikey

The error that is received is shown on the right.

Date: Mon, 05 Nov 2018 07:49:10 GMT
Content-Type: application/problem+json
Content-Length: 121
{
"type":"/mng/errors/operation-failed",
"title":"Authentication failed",
"details":"Password must be changed",
"status":400
}

Get CASP service status

Code samples

var headers = {
  'Accept':'application/json'

};

$.ajax({
  url: '/casp/api/v1.0/mng/status',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/status \
  -H 'Accept: application/json'

GET /casp/api/v1.0/mng/status

Return the CASP service status

Verifies that the service is healthy and operational

Parameters

Parameter	In	Type	Required	Description
withDetails	query	boolean	false	Include system details

Example responses

200 Response

{
  "version": "string",
  "ukc": {
    "healthy": true,
    "errorMessage": "string"
  },
  "db": {
    "healthy": true,
    "errorMessage": "string"
  },
  "nativeCrypto": {
    "healthy": true,
    "errorMessage": "string"
  }
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
500	Internal Server Error	Get status failed, the service is not operational	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» version	string	true	none	none
» ukc	object	true	none	none
»» healthy	boolean	true	none	Is entity healthy
»» errorMessage	string	false	none	Error message in case entity is not healthy
» db	object	true	none	none
»» healthy	boolean	true	none	Is entity healthy
»» errorMessage	string	false	none	Error message in case entity is not healthy
» nativeCrypto	object	true	none	none
»» healthy	boolean	true	none	Is entity healthy
»» errorMessage	string	false	none	Error message in case entity is not healthy

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Get coin type service status

Code samples

var headers = {
  'Accept':'application/json'

};

$.ajax({
  url: '/{coinType}/api/v1.0/status',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /{coinType}/api/v1.0/status \
  -H 'Accept: application/json'

GET /{coinType}/api/v1.0/status

Return the service status for a specific coin type

Verifies that the service is healthy and operational

Parameters

Parameter	In	Type	Required	Description
coinType	path	string	true	Coin type
withDetails	query	boolean	false	Include system details

Example responses

200 Response

{
  "version": "string",
  "ledger": {
    "healthy": true,
    "errorMessage": "string"
  },
  "casp": {
    "healthy": true,
    "errorMessage": "string"
  }
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
500	Internal Server Error	Get status failed, the service is not operational	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» version	string	false	none	none
» ledger	object	false	none	none
»» healthy	boolean	false	none	none
»» errorMessage	string	false	none	none
» casp	object	false	none	none
»» healthy	boolean	false	none	none
»» errorMessage	string	false	none	none

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Authentication

CASP uses access tokens and API keys to add a layer of security to the API requests.

• Long term access – for applications or scripts that require long term access, an API key with a one-year time limit can be created. The CASP Admin generates an API key by calling the /auth/apikeys POST operation (and providing the credentials). The returned API key must be added to the authorization header (as a bearer token) for every REST call. The Admin can generate several API keys for different app usages.
• Short term access – for shorter access, such as for the web UI, the user can generate an access token that is valid for 20 minutes by calling the /auth/tokens POST operation. The access token must be added to the authorization header (as a bearer token) to every REST call.

Create a new user

Code samples

var headers = {
  'Content-Type':'application/x-www-form-urlencoded',
  'Accept':'*/*'

};

$.ajax({
  url: '/casp/api/v1.0/mng/auth/users',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/auth/users \
  -H 'Content-Type: application/x-www-form-urlencoded' \
  -H 'Accept: */*'

POST /casp/api/v1.0/mng/auth/users

Create a new user

Create a new user

Body parameter

name: string
role: ADMIN
password: string

Parameters

Parameter	In	Type	Required	Description
body	body	object	false	none
» name	body	string	true	user's name
» role	body	string	true	user's role
» password	body	string	true	user's password

Enumerated Values

Parameter	Value
» role	ADMIN
» role	USER

Example responses

401 Response

Responses

Status	Meaning	Description	Schema
201	Created	New user created successfully	None
401	Unauthorized	Unauthorized: Invalid user name or password	Inline
409	Conflict	User already exists	Inline
500	Internal Server Error	Create new user failed	Inline

Response Schema

Status Code 401

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 409

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

List users

Code samples

var headers = {
  'Accept':'application/json'

};

$.ajax({
  url: '/casp/api/v1.0/mng/auth/users',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/auth/users \
  -H 'Accept: application/json'

GET /casp/api/v1.0/mng/auth/users

List users

List users

Example responses

200 Response

[
  {
    "name": "string",
    "role": "ADMIN",
    "enabled": true
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
400	Bad Request	Unauthorized: Invalid request	Inline
500	Internal Server Error	Internal error	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» name	string	true	none	User name
» role	string	false	none	Users roles
» enabled	boolean	true	none	User enabled state

Enumerated Values

Property	Value
role	ADMIN
role	USER

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Change user password

Code samples

var headers = {
  'Content-Type':'application/x-www-form-urlencoded',
  'Accept':'application/json'

};

$.ajax({
  url: '/casp/api/v1.0/mng/auth/users/password',
  method: 'put',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X PUT /casp/api/v1.0/mng/auth/users/password \
  -H 'Content-Type: application/x-www-form-urlencoded' \
  -H 'Accept: application/json'

PUT /casp/api/v1.0/mng/auth/users/password

Change user password

Change user's password to the CASP service

Body parameter

value: string

Parameters

Parameter	In	Type	Required	Description
body	body	object	false	none
» value	body	string	true	User's password

Example responses

401 Response

{
  "type": "string",
  "title": "string",
  "details": "string",
  "status": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	None
401	Unauthorized	Unauthorized: Invalid user name or password	Inline
500	Internal Server Error	Change password failed	Inline

Response Schema

Status Code 401

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Update user

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json'

};

$.ajax({
  url: '/casp/api/v1.0/mng/auth/users/{user_name}',
  method: 'put',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X PUT /casp/api/v1.0/mng/auth/users/{user_name} \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json'

PUT /casp/api/v1.0/mng/auth/users/{user_name}

Update user

Update user

Body parameter

{
  "enabled": true
}

Parameters

Parameter	In	Type	Required	Description
user_name	path	string	true	User Name
body	body	object	true	Update user's state
» enabled	body	boolean	false	Is user enabled

Example responses

400 Response

{
  "type": "string",
  "title": "string",
  "details": "string",
  "status": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	A user was successfully updated	None
400	Bad Request	Unauthorized: Invalid request	Inline
500	Internal Server Error	A user removal failed	Inline

Response Schema

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Remove a user

Code samples

var headers = {
  'Accept':'*/*'

};

$.ajax({
  url: '/casp/api/v1.0/mng/auth/users/{user_name}',
  method: 'delete',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X DELETE /casp/api/v1.0/mng/auth/users/{user_name} \
  -H 'Accept: */*'

DELETE /casp/api/v1.0/mng/auth/users/{user_name}

Remove a user

Remove a user

Parameters

Parameter	In	Type	Required	Description
user_name	path	string	true	User Name

Example responses

400 Response

Responses

Status	Meaning	Description	Schema
200	OK	A user was successfully removed	None
400	Bad Request	Unauthorized: Invalid request	Inline
500	Internal Server Error	A user removal failed	Inline

Response Schema

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

List API Keys

Code samples

var headers = {
  'Accept':'application/json'

};

$.ajax({
  url: '/casp/api/v1.0/mng/auth/apikeys',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/auth/apikeys \
  -H 'Accept: application/json'

GET /casp/api/v1.0/mng/auth/apikeys

List API Keys

List API Keys for CASP service

Example responses

200 Response

[
  {
    "clientId": "string",
    "tokenType": "BEARER",
    "expiry_in": 0,
    "scope": "string"
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
400	Bad Request	Unauthorized: Invalid request	Inline
500	Internal Server Error	Internal error	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» clientId	string	true	none	Api key client_id
» tokenType	string	true	none	Api key token type
» expiry_in	integer(int64)	true	none	Api key expiry in
» scope	string	true	none	Api key scope

Enumerated Values

Property	Value
tokenType	BEARER

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Get API Key

Code samples

var headers = {
  'Content-Type':'application/x-www-form-urlencoded',
  'Accept':'application/json'

};

$.ajax({
  url: '/casp/api/v1.0/mng/auth/apikeys',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/auth/apikeys \
  -H 'Content-Type: application/x-www-form-urlencoded' \
  -H 'Accept: application/json'

POST /casp/api/v1.0/mng/auth/apikeys

Get API Key

Get API Key for CASP service. See https://tools.ietf.org/html/rfc6749#section-4.4

Body parameter

client_id: string
scope: string
grant_type: string

Parameters

Parameter	In	Type	Required	Description
body	body	object	false	none
» client_id	body	string	true	Owner client ID auth token will be issued for
» scope	body	string	true	Auth token scope. Value MUST be set to "/mng"
» grant_type	body	string	true	Request's grant type. Value MUST be set to "client_credentials"

Example responses

201 Response

{
  "access_token": "string",
  "token_type": "string",
  "expires_in": 0,
  "scope": "string"
}

Responses

Status	Meaning	Description	Schema
201	Created	API key created	Inline
401	Unauthorized	Unauthorized: Authentication data is invalid	Inline
409	Conflict	API key cannot be generated	Inline
500	Internal Server Error	Get API key failed	Inline

Response Schema

Status Code 201

Name	Type	Required	Restrictions	Description
» access_token	string	true	none	Oauth Token for CASP service
» token_type	string	false	none	Oauth Token type
» expires_in	integer(int64)	false	none	Expiration in seconds
» scope	string	false	none	Oauth token scope

Status Code 401

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 409

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Revoke an Api key

Code samples

var headers = {
  'Content-Type':'application/x-www-form-urlencoded',
  'Accept':'application/json'

};

$.ajax({
  url: '/casp/api/v1.0/mng/auth/apikeys',
  method: 'delete',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X DELETE /casp/api/v1.0/mng/auth/apikeys \
  -H 'Content-Type: application/x-www-form-urlencoded' \
  -H 'Accept: application/json'

DELETE /casp/api/v1.0/mng/auth/apikeys

Revoke an Api key

Revoke an Api key

Body parameter

client_id: string

Parameters

Parameter	In	Type	Required	Description
body	body	Revoke_an_Api_key	false	none
» client_id	body	string	true	client_id

Example responses

400 Response

{
  "type": "string",
  "title": "string",
  "details": "string",
  "status": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	An api key was successfully removed	None
400	Bad Request	Unauthorized: Invalid request	Inline
500	Internal Server Error	An api key removal failed	Inline

Response Schema

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Get access token

Code samples

var headers = {
  'Content-Type':'application/x-www-form-urlencoded',
  'Accept':'application/json'

};

$.ajax({
  url: '/casp/api/v1.0/mng/auth/tokens',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/auth/tokens \
  -H 'Content-Type: application/x-www-form-urlencoded' \
  -H 'Accept: application/json'

POST /casp/api/v1.0/mng/auth/tokens

Get access token

Get access token for CASP service. See https://tools.ietf.org/html/rfc6749#section-4.3

Body parameter

username: string
password: string
grant_type: string

Parameters

Parameter	In	Type	Required	Description
body	body	object	false	none
» username	body	string	true	Admin username
» password	body	string	true	Admin password
» grant_type	body	string	true	Request's grant type. Value MUST be set to "password"

Example responses

201 Response

{
  "access_token": "string",
  "token_type": "string",
  "expires_in": 0,
  "scope": "string"
}

Responses

Status	Meaning	Description	Schema
201	Created	Access token created	Inline
401	Unauthorized	Unauthorized: Authentication data is invalid	Inline
409	Conflict	Auth token cannot be generated	Inline
500	Internal Server Error	Get auth token failed	Inline

Response Schema

Status Code 201

Name	Type	Required	Restrictions	Description
» access_token	string	true	none	Oauth Token for CASP service
» token_type	string	false	none	Oauth Token type
» expires_in	integer(int64)	false	none	Expiration in seconds
» scope	string	false	none	Oauth token scope

Status Code 401

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 409

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Revoke an access token

Code samples

var headers = {
  'Content-Type':'application/x-www-form-urlencoded',
  'Accept':'application/json'

};

$.ajax({
  url: '/casp/api/v1.0/mng/auth/tokens',
  method: 'delete',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X DELETE /casp/api/v1.0/mng/auth/tokens \
  -H 'Content-Type: application/x-www-form-urlencoded' \
  -H 'Accept: application/json'

DELETE /casp/api/v1.0/mng/auth/tokens

Revoke an access token

Revoke an access token

Body parameter

client_id: string

Parameters

Parameter	In	Type	Required	Description
body	body	Revoke_an_Api_key	false	none
» client_id	body	string	true	client_id

Example responses

400 Response

{
  "type": "string",
  "title": "string",
  "details": "string",
  "status": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	An access token was successfully removed	None
400	Bad Request	Unauthorized: Invalid request	Inline
500	Internal Server Error	An access token removal failed	Inline

Response Schema

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Accounts

An account is a container for a set of vaults and participants that manage these vaults. An account may represent a client of the system, a trader, an organization, etc. The CASP service supports creating different accounts, managing account participants (human users or machine BOT's), creating secure vaults for the account, and executing different crypto asset transactions within the account.

The CASP service supports the notion of global accounts, which can manage vaults across other accounts. This notion can support the use case of the CASP service providers managing vaults on behalf of the CASP clients.

Create a new account

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/accounts',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/accounts \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /casp/api/v1.0/mng/accounts

Create a new account

Create a new account managed by the CASP service

Body parameter

{
  "name": "string",
  "isGlobal": true
}

Parameters

Parameter	In	Type	Required	Description
body	body	object	true	Create accounts request
» name	body	string	true	Account name
» isGlobal	body	boolean	false	Is account global

Example responses

201 Response

{
  "id": "string",
  "name": "string",
  "isGlobal": true
}

Responses

Status	Meaning	Description	Schema
201	Created	OK	Inline
409	Conflict	Account already exists	Inline
500	Internal Server Error	Create account failed	Inline

Response Schema

Status Code 201

Name	Type	Required	Restrictions	Description
» id	string	true	none	Account ID
» name	string	true	none	Account name
» isGlobal	boolean	true	none	Is global account

Status Code 409

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

List accounts

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/accounts',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/accounts \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/accounts

List accounts

List all accounts managed by the CASP service

Parameters

Parameter	In	Type	Required	Description
withStats	query	boolean	false	Include additional info per account

Example responses

200 Response

[
  {
    "id": "string",
    "name": "string",
    "isGlobal": true,
    "stats": {
      "participants": {
        "total": 0,
        "inactive": 0
      },
      "statsOperation": {
        "total": 0,
        "pending": 0
      },
      "statsVaults": {
        "total": 0,
        "inactive": 0
      }
    }
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Not found	Inline
500	Internal Server Error	List accounts failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» id	string	true	none	Account ID
» name	string	true	none	Account name
» isGlobal	boolean	true	none	Is global account
» stats	object	true	none	none
»» participants	object	true	none	none
»»» total	integer(int32)	true	none	Total number of participants in the account
»»» inactive	integer(int32)	true	none	Total number of inactive participants in the account
»» statsOperation	object	true	none	none
»»» total	integer(int32)	true	none	The number of operations from the account
»»» pending	integer(int32)	true	none	The number of operations that are still pending
»» statsVaults	object	true	none	none
»»» total	integer(int32)	true	none	The number of vaults that belong to this account
»»» inactive	integer(int32)	true	none	The number of inactive vaults that belong to this account

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Get account details

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/accounts/{id}',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/accounts/{id} \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/accounts/{id}

Get account details

Get account information about a specific account

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Account ID
withStats	query	boolean	false	Return detailed information about the account

Example responses

200 Response

[
  {
    "id": "string",
    "name": "string",
    "isGlobal": true,
    "stats": {
      "participants": {
        "total": 0,
        "inactive": 0
      },
      "statsOperation": {
        "total": 0,
        "pending": 0
      },
      "statsVaults": {
        "total": 0,
        "inactive": 0
      }
    }
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Not found	Inline
500	Internal Server Error	Get account details failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» id	string	true	none	Account ID
» name	string	true	none	Account name
» isGlobal	boolean	true	none	Is global account
» stats	object	true	none	none
»» participants	object	true	none	none
»»» total	integer(int32)	true	none	Total number of participants in the account
»»» inactive	integer(int32)	true	none	Total number of inactive participants in the account
»» statsOperation	object	true	none	none
»»» total	integer(int32)	true	none	The number of operations from the account
»»» pending	integer(int32)	true	none	The number of operations that are still pending
»» statsVaults	object	true	none	none
»»» total	integer(int32)	true	none	The number of vaults that belong to this account
»»» inactive	integer(int32)	true	none	The number of inactive vaults that belong to this account

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Update an existing account

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/accounts/{id}',
  method: 'put',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X PUT /casp/api/v1.0/mng/accounts/{id} \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

PUT /casp/api/v1.0/mng/accounts/{id}

Update an existing account

Update the parameters for a specific account

Body parameter

{
  "name": "string",
  "isGlobal": true
}

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Account ID
body	body	object	true	Update account request
» name	body	string	true	Account name
» isGlobal	body	boolean	false	Is account global

Example responses

404 Response

{
  "type": "string",
  "title": "string",
  "details": "string",
  "status": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	None
404	Not Found	Account not found	Inline
409	Conflict	Account name already exists	Inline
500	Internal Server Error	Update account failed	Inline

Response Schema

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 409

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Delete an account

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/accounts/{id}',
  method: 'delete',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X DELETE /casp/api/v1.0/mng/accounts/{id} \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

DELETE /casp/api/v1.0/mng/accounts/{id}

Delete an account

Delete an existing account. Only accounts with no vaults or participants may be deleted.

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Account ID

Example responses

403 Response

{
  "type": "string",
  "title": "string",
  "details": "string",
  "status": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	None
403	Forbidden	Forbidden	Inline
404	Not Found	Account not found	Inline
500	Internal Server Error	Delete account failed	Inline

Response Schema

Status Code 403

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Participants

A participant can be a human within the account or a BOT taking part in crypto asset transactions. Each participant owns a share of the cryptographic material that is part of the different transactions. CASP supports participants using any relevant platform, including mobile devices, laptops, and different server platforms for BOT's.

Create a new participant

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/accounts/{id}/participants',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/accounts/{id}/participants \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /casp/api/v1.0/mng/accounts/{id}/participants

Create a new participant

Create a new participant in the specified account

Body parameter

{
  "name": "string",
  "email": "string",
  "role": "string"
}

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Account ID
body	body	object	true	Create participant request
» name	body	string	true	Participant name
» email	body	string	true	Participant email
» role	body	string	true	Participant role

Example responses

201 Response

{
  "id": "string",
  "activationCode": "string",
  "name": "string"
}

Responses

Status	Meaning	Description	Schema
201	Created	New participant created successfully	Inline
404	Not Found	Account not found	Inline
406	Not Acceptable	Email is not valid	Inline
409	Conflict	Participant already exists	Inline
500	Internal Server Error	Create new participant failed	Inline

Response Schema

Status Code 201

Name	Type	Required	Restrictions	Description
» id	string	true	none	Participant ID
» activationCode	string	true	none	Activation code for the specified participant
» name	string	true	none	Participant name

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 409

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

List participants per account

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/accounts/{id}/participants',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/accounts/{id}/participants \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/accounts/{id}/participants

List participants per account

List all participants in the account, which can be both humans and BOT's. An option is provided to include the deactivated participants.

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Account ID
withGlobal	query	boolean	false	Include participants which take part in this account vaults and belong to a different global account
withDeactivated	query	boolean	false	Include deactivated participants

Example responses

200 Response

[
  {
    "id": "string",
    "accountID": "string",
    "name": "string",
    "email": "string",
    "status": "NOT_ACTIVATED",
    "isActive": true,
    "accountName": "string",
    "role": "string",
    "vaults": [
      {
        "id": "string",
        "publicKey": "string"
      }
    ]
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Account not found	Inline
500	Internal Server Error	List participant per account failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» id	string	true	none	Participant ID
» accountID	string	true	none	Participant account ID
» name	string	true	none	Participant name
» email	string	true	none	Participant email
» status	string	true	none	Participant status
» isActive	boolean	true	none	Participant activation state
» accountName	string	true	none	Participant account name
» role	string	true	none	Participant role
» vaults	[object]	false	none	none
»» id	string	true	none	Vault ID
»» publicKey	string	true	none	Vault public key

Enumerated Values

Property	Value
status	NOT_ACTIVATED
status	ACTIVATED
status	DEACTIVATED

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Get participant information

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/participants/{id}',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/participants/{id} \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/participants/{id}

Get participant information

Get details of a participant

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Participant ID
withVaults	query	boolean	false	Get information on vaults for this participant

Example responses

200 Response

{
  "id": "string",
  "accountID": "string",
  "name": "string",
  "email": "string",
  "status": "NOT_ACTIVATED",
  "isActive": true,
  "accountName": "string",
  "role": "string",
  "vaults": [
    {
      "id": "string",
      "publicKey": "string"
    }
  ]
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Participant not found	Inline
500	Internal Server Error	Get participant failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» id	string	true	none	Participant ID
» accountID	string	true	none	Participant account ID
» name	string	true	none	Participant name
» email	string	true	none	Participant email
» status	string	true	none	Participant status
» isActive	boolean	true	none	Participant activation state
» accountName	string	true	none	Participant account name
» role	string	true	none	Participant role
» vaults	[object]	false	none	none
»» id	string	true	none	Vault ID
»» publicKey	string	true	none	Vault public key

Enumerated Values

Property	Value
status	NOT_ACTIVATED
status	ACTIVATED
status	DEACTIVATED

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Update an existing participant

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/participants/{id}',
  method: 'put',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X PUT /casp/api/v1.0/mng/participants/{id} \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

PUT /casp/api/v1.0/mng/participants/{id}

Update an existing participant

Update participant details. Participant name and other attributes can be changed. This service is also used to deactivate a participant by setting

Body parameter

{
  "name": "string",
  "email": "string",
  "role": "string",
  "status": "ACTIVATED"
}

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Participant ID
body	body	object	true	Update participant request
» name	body	string	false	Participant name
» email	body	string	false	Participant email
» role	body	string	false	Participant role
» status	body	string	false	Participant status

Enumerated Values

Parameter	Value
» status	ACTIVATED
» status	DEACTIVATED

Example responses

404 Response

{
  "type": "string",
  "title": "string",
  "details": "string",
  "status": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	None
404	Not Found	Participant not found	Inline
409	Conflict	Cannot deactivate participant	Inline
500	Internal Server Error	Update participant failed	Inline

Response Schema

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 409

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Delete a participant

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/participants/{id}',
  method: 'delete',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X DELETE /casp/api/v1.0/mng/participants/{id} \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

DELETE /casp/api/v1.0/mng/participants/{id}

Delete a participant

Deletes a participant. A participant can be deleted only if it has no related vaults.

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Participant ID

Example responses

403 Response

{
  "type": "string",
  "title": "string",
  "details": "string",
  "status": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	None
403	Forbidden	Forbidden	Inline
404	Not Found	Participant not found	Inline
500	Internal Server Error	Delete participant failed	Inline

Response Schema

Status Code 403

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Regenerate activation code

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/participants/{id}/reactivate',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/participants/{id}/reactivate \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /casp/api/v1.0/mng/participants/{id}/reactivate

Regenerate activation code for an existing participant

Regenerate activation code for an existing participant. Used when the activation code was lost or the participant need to be reactivated.

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Participant ID

Example responses

200 Response

{
  "id": "string",
  "activationCode": "string",
  "name": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Participant not found	Inline
500	Internal Server Error	Regenerate activation code failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» id	string	true	none	Participant ID
» activationCode	string	true	none	Activation code for the specified participant
» name	string	true	none	Participant name

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Vault Operations

A vault is a secure container for the cryptographic material used to protect a crypto asset, such as the seed or private key. CASP uses Multiparty Computation (MPC) to split the crypto material between the different participants in the vault, which ensures that the material never exists in a single place. In addition, only the approved set of participants can complete a transaction based on the vault definition.

A Quorum vault shares the responsibility of executing a transaction between many different participants in a structure defined by the vault policy. The vault policy contains a quorum-based structure where there are any number of groups, any threshold value per group, any tree structure between different groups, etc. The MPC protocols used by CASP ensure that if and only if the quorum definition is satisfied, a transaction can take place, which is enforced on the cryptographic level.

Use the relevant endpoint based on the currency you want to work with. The list of supported currencies and the matching short names can be found in Supported Coins. In this document, Bitcoin is used as an example.

The main endpoints for vault management are:

/btctest/api/v1.0/accounts/{accountId}/vaults

and

/btctest/api/v1.0/vaults/{vaultId}

Create a new vault

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/{coinType}/api/v1.0/accounts/{id}/vaults',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /{coinType}/api/v1.0/accounts/{id}/vaults \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /{coinType}/api/v1.0/accounts/{id}/vaults

Create a new vault

This request starts the process of creating a new quorum vault. The vault is created only after the participants approve the vault creation according to the vault policy.

Body parameter

{
  "name": "string",
  "description": "string",
  "hierarchy": true,
  "firstAccountName": "string",
  "groups": [
    {
      "name": "string",
      "requiredApprovals": 0,
      "members": [
        {
          "id": "string"
        }
      ]
    }
  ],
  "additionalData": "string"
}

Parameters

Parameter	In	Type	Required	Description
coinType	path	string	true	Coin type
id	path	string	true	Account ID
body	body	object	true	Create Vault Request
» name	body	string	true	Vault name
» description	body	string	true	Vault description
» hierarchy	body	boolean	false	True to create a BIP44 hierarchy, false to create a deterministic vault
» firstAccountName	body	string	false	The name of the first account
» groups	body	[object]	true	Vault approval groups
»» name	body	string	true	Vault group name
»» requiredApprovals	body	integer(int32)	true	Vault group required approvals
»» members	body	[object]	true	Vault group members
»»» id	body	string	true	Participant ID
»» additionalData	body	string	false	Some additional data about the vault, in string form, that the specific coin type can store in the CASP

Example responses

201 Response

{
  "id": "string",
  "name": "string",
  "description": "string",
  "accountID": "string"
}

Responses

Status	Meaning	Description	Schema
201	Created	New vault created successfully, waiting for participant approval	Inline
404	Not Found	Missing data	Inline
409	Conflict	Vault already exists	Inline
500	Internal Server Error	Create vault failed	Inline
503	Service Unavailable	CASP service is not available	Inline

Response Schema

Status Code 201

Name	Type	Required	Restrictions	Description
» id	string	false	none	Vault ID
» name	string	true	none	Vault name
» description	string	true	none	Vault description
» accountID	string	true	none	Vault account ID

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 409

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 503

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

List vaults

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/{coinType}/api/v1.0/accounts/{id}/vaults',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /{coinType}/api/v1.0/accounts/{id}/vaults \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /{coinType}/api/v1.0/accounts/{id}/vaults

Get list of vaults that works with current coin type per account

List all vaults for specified kind in the account. By default only active vaults are listed.

Parameters

Parameter	In	Type	Required	Description
coinType	path	string	true	Coin type
id	path	string	true	Account ID
withDeactivated	query	boolean	false	Include deactivated vaults

Example responses

200 Response

[
  {
    "id": "string",
    "description": "string",
    "name": "string",
    "accountID": "string",
    "status": "NOT_INITIALIZED",
    "statusText": "string",
    "hierarchy": true,
    "additionalData": "string"
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Account not found	Inline
500	Internal Server Error	List vaults per account failed	Inline
503	Service Unavailable	CASP service is not available	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» id	string	true	none	Vault ID
» description	string	true	none	Vault description
» name	string	true	none	Vault name
» accountID	string	true	none	Vault account
» status	string	true	none	Vault status
» statusText	string	true	none	Vault status text
» hierarchy	boolean	true	none	Vault hierarchy
» additionalData	string	false	none	additional data

Enumerated Values

Property	Value
status	NOT_INITIALIZED
status	INITIALIZED
status	DEACTIVATED

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 503

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Get vault info

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/{coinType}/api/v1.0/vaults/{id}',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /{coinType}/api/v1.0/vaults/{id} \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /{coinType}/api/v1.0/vaults/{id}

Get vault info

Get details of a vault

Parameters

Parameter	In	Type	Required	Description
coinType	path	string	true	Coin type
id	path	string	true	Vault ID
bip44account	query	integer(int32)	false	The account index
contractAddress	query	string	false	Contract Address (For use ETH-ERC20 coins only)

Example responses

200 Response

{
  "id": "string",
  "description": "string",
  "name": "string",
  "accountID": "string",
  "status": "NOT_INITIALIZED",
  "statusText": "string",
  "hierarchy": true,
  "additionalData": "string",
  "addresses": [
    "string"
  ],
  "balance": 0,
  "feeBalance": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Vault not found	Inline
500	Internal Server Error	Get vault details failed	Inline
503	Service Unavailable	CASP service is not available	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» id	string	true	none	Vault ID
» description	string	true	none	Vault description
» name	string	true	none	Vault name
» accountID	string	true	none	Vault account
» status	string	true	none	Vault status
» statusText	string	true	none	Vault status text
» hierarchy	boolean	true	none	Vault hierarchy
» additionalData	string	false	none	additional data
» addresses	[string]	true	none	Vault addresses
» balance	number(double)	true	none	Vault balance
» feeBalance	number(double)	false	none	The amount available to pay transaction fee

Enumerated Values

Property	Value
status	NOT_INITIALIZED
status	INITIALIZED
status	DEACTIVATED

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 503

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Update an existing vault

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'*/*',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{id}',
  method: 'put',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X PUT /casp/api/v1.0/mng/vaults/{id} \
  -H 'Content-Type: application/json' \
  -H 'Accept: */*' \
  -H 'Authorization: API_KEY'

PUT /casp/api/v1.0/mng/vaults/{id}

Update an existing vault

Updates an existing vault. The vault name and description can be updated.

Body parameter

{
  "name": "string",
  "description": "string"
}

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Vault ID
body	body	object	true	Update vault Request
» name	body	string	true	Vault name
» description	body	string	true	Vault description

Example responses

404 Response

Responses

Status	Meaning	Description	Schema
200	OK	OK	None
404	Not Found	Vault not found	Inline
500	Internal Server Error	Update vault failed	Inline

Response Schema

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Delete an existing vault

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{id}',
  method: 'delete',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X DELETE /casp/api/v1.0/mng/vaults/{id} \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

DELETE /casp/api/v1.0/mng/vaults/{id}

Delete an existing vault

Deletes an existing vault. Only vaults which are not activated yet can be deleted.

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Vault ID

Example responses

403 Response

{
  "type": "string",
  "title": "string",
  "details": "string",
  "status": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	None
403	Forbidden	Vault deletion is not allowed	Inline
404	Not Found	Vault not found	Inline
500	Internal Server Error	Delete vault failed	Inline

Response Schema

Status Code 403

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Create an external address

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/{coinType}/api/v1.0/vaults/{vaultId}/accounts/{accountIndex}/addresses',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /{coinType}/api/v1.0/vaults/{vaultId}/accounts/{accountIndex}/addresses \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /{coinType}/api/v1.0/vaults/{vaultId}/accounts/{accountIndex}/addresses

Create a new external address

Create a new BIP44 external address. See the Keychain Management section for more information.

Parameters

Parameter	In	Type	Required	Description
coinType	path	string	true	Coin type
vaultId	path	string	true	Vault ID
accountIndex	path	integer(int32)	true	The account index

Example responses

200 Response

{
  "address": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
400	Bad Request	Bad request	Inline
404	Not Found	Item not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Add participant failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» address	string	false	none	This generated address

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Start withdrawal process

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/{coinType}/api/v1.0/vaults/{id}/withdrawals',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /{coinType}/api/v1.0/vaults/{id}/withdrawals \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /{coinType}/api/v1.0/vaults/{id}/withdrawals

Start withdrawal process

Starts the process of a quorum-based transaction signing operation that is used when withdrawing a cryptoasset.

The operation finishes when the minimum number of participants approve the transaction signing operation.

You can check the task status by calling the /withdrawals service. This service should be used when the blockchain management is done within CASP, as it will sign the transaction and send it to the relevant blockchain.

Body parameter

{
  "amount": 0,
  "recipientAddress": "string",
  "fee": "LOW",
  "description": "string",
  "bip44AccountIndex": 0,
  "contractAddress": "string"
}

Parameters

Parameter	In	Type	Required	Description
coinType	path	string	true	Coin type
id	path	string	true	Vault ID
body	body	object	true	Withdrawal Request
» amount	body	number(double)	true	Transaction amount
» recipientAddress	body	string	true	Recipient address for the transaction
» fee	body	string	true	Transaction fee
» description	body	string	true	Transaction description
» bip44AccountIndex	body	integer(int32)	false	The account index
» contractAddress	body	string	false	Contract Address (For use ETH-ERC20 coins only)

Enumerated Values

Parameter	Value
» fee	LOW
» fee	MEDIUM
» fee	HIGH

Example responses

200 Response

{
  "operationID": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	Withdrawal request accepted	Inline
400	Bad Request	Bad withdrawal request	Inline
403	Forbidden	Not allowed	Inline
404	Not Found	Missing data	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Withdrawal failed	Inline
503	Service Unavailable	CASP service is not available	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» operationID	string	true	none	Operation ID

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 403

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 503

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Get withdrawal information

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/{coinType}/api/v1.0/withdrawals/{operationid}',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /{coinType}/api/v1.0/withdrawals/{operationid} \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /{coinType}/api/v1.0/withdrawals/{operationid}

Get withdrawal information

Signing a withdrawal with a quorum vault requires approval of the quorum. This request queries the withdrawal information and status of such an asynchronous operation.

Parameters

Parameter	In	Type	Required	Description
coinType	path	string	true	Coin type
operationid	path	string	true	Operation ID

Example responses

200 Response

{
  "status": "PENDING",
  "statusText": "string",
  "createdAt": "string",
  "vaultId": "string",
  "description": "string",
  "amount": 0,
  "fee": "string",
  "recipientAddress": "string",
  "details": "string",
  "transactionID": "string",
  "dataToSign": [
    "string"
  ],
  "signatures": [
    "string"
  ]
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Withdrawal operation not found	Inline
500	Internal Server Error	Get Operation details failed	Inline
503	Service Unavailable	CASP service is not available	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» status	string	true	none	Operation status
» statusText	string	true	none	Operation status text
» createdAt	string	true	none	Operation creation time
» vaultId	string	true	none	Vault ID
» description	string	true	none	Description of the operation
» amount	number(double)	true	none	Withdrawal amount
» fee	string	true	none	Withdrawal fee
» recipientAddress	string	true	none	Recipient address
» details	string	true	none	This is a field that can be used to store formatted operation information in the CASP database. The information can subsequently be sent to the end point for display
» transactionID	string	false	none	Withdrawal transaction ID
» dataToSign	[string]	true	none	List of data to sign
» signatures	[string]	true	none	Signatures

Enumerated Values

Property	Value
status	PENDING
status	APPROVED
status	COMPLETED
status	DECLINED
status	CANCELED
status	FAILED
status	ERROR

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 503

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Get operation status

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/operations/{operationid}',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/operations/{operationid} \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/operations/{operationid}

Get operation status

Quorum vault operations require approval of the quorum. This request queries the status of such an asynchronous operation.

Parameters

Parameter	In	Type	Required	Description
operationid	path	string	true	Operation ID

Example responses

200 Response

{
  "operationID": "string",
  "kind": "CREATE_VAULT",
  "status": "PENDING",
  "statusText": "string",
  "createdAt": "string",
  "vaultID": "string",
  "description": "string",
  "groups": [
    {
      "name": "string",
      "members": [
        {
          "approvedAt": "string",
          "id": "string",
          "isApproved": true,
          "name": "string",
          "status": "STARTED",
          "approvalGroupAccount": {
            "id": "string",
            "name": "string"
          },
          "label": "string",
          "isGlobal": true,
          "isActive": true
        }
      ],
      "requiredApprovals": 0,
      "order": 0,
      "deactivateAllowed": true
    }
  ],
  "isApproved": true,
  "accountID": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Operation not found	Inline
500	Internal Server Error	Get Operation status failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» operationID	string	true	none	Operation ID
» kind	string	true	none	Request kind
» status	string	true	none	Operation status
» statusText	string	true	none	Operation status text
» createdAt	string	true	none	Operation creation time
» vaultID	string	true	none	Vault ID
» description	string	true	none	Description of the operation
» groups	[object]	true	none	Operation approval groups
»» name	string	true	none	Approval group name
»» members	[object]	true	none	A list of participants in the group
»»» approvedAt	string	true	none	Participant approval time
»»» id	string	true	none	Participant ID
»»» isApproved	boolean	true	none	Participant approval state
»»» name	string	true	none	Participant name
»»» status	string	true	none	Participant task status
»»» approvalGroupAccount	object	true	none	none
»»»» id	string	true	none	Account ID
»»»» name	string	true	none	Account name
»»» label	string	true	none	Participant label
»»» isGlobal	boolean	true	none	Participant global state
»»» isActive	boolean	true	none	none
»» requiredApprovals	integer(int32)	true	none	The number of group participants that need to give approval
»» order	integer(int32)	true	none	This field determines the order in which groups are prompted for approvals
»» deactivateAllowed	boolean	true	none	A group participant can be deactivated for this group
» isApproved	boolean	true	none	Approval state for the operation
» accountID	string	true	none	Account ID for the operation

Enumerated Values

Property	Value
kind	CREATE_VAULT
kind	ADD_MEMBER
kind	SIGN
status	PENDING
status	APPROVED
status	COMPLETED
status	DECLINED
status	CANCELED
status	FAILED
status	ERROR
status	STARTED
status	DONE
status	DECLINED

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Cancel a pending operation

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/operations/{operationid}/cancel',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/operations/{operationid}/cancel \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /casp/api/v1.0/mng/operations/{operationid}/cancel

Cancel a pending operation

Parameters

Parameter	In	Type	Required	Description
operationid	path	string	true	Operation ID

Example responses

404 Response

{
  "type": "string",
  "title": "string",
  "details": "string",
  "status": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	None
404	Not Found	Operation not found	Inline
409	Conflict	Operation on running	Inline
500	Internal Server Error	Cancel a pending operation failed	Inline

Response Schema

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 409

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Resend sign transaction operation

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/operations/sign/{operationid}/resend',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/operations/sign/{operationid}/resend \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /casp/api/v1.0/mng/operations/sign/{operationid}/resend

Resend sign transaction operation

Resend the sign operation metadata. This tries to resend the results of the sign operation and complete the coin transaction

Parameters

Parameter	In	Type	Required	Description
operationid	path	string	true	Operation ID

Example responses

400 Response

{
  "type": "string",
  "title": "string",
  "details": "string",
  "status": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	None
400	Bad Request	Cannot resend the sign operation	Inline
404	Not Found	Operation not found	Inline
500	Internal Server Error	Resend Operation failed	Inline

Response Schema

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

List operations per account

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/accounts/{id}/operations',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/accounts/{id}/operations \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/accounts/{id}/operations

List operations per account

List operations associated with account vaults. By default, only operations which are in process (not completed) will be returned.

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Account ID
withCompleted	query	boolean	false	Include completed operations
onlyApproved	query	boolean	false	Show only approved operations

Example responses

200 Response

[
  {
    "operationID": "string",
    "kind": "CREATE_VAULT",
    "status": "PENDING",
    "statusText": "string",
    "createdAt": "string",
    "vaultID": "string",
    "description": "string"
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
500	Internal Server Error	List operations per account failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» operationID	string	true	none	Operation ID
» kind	string	true	none	Request kind
» status	string	true	none	Operation status
» statusText	string	true	none	Operation status text
» createdAt	string	true	none	Operation creation time
» vaultID	string	true	none	Vault ID
» description	string	true	none	Description of the operation

Enumerated Values

Property	Value
kind	CREATE_VAULT
kind	ADD_MEMBER
kind	SIGN
status	PENDING
status	APPROVED
status	COMPLETED
status	DECLINED
status	CANCELED
status	FAILED
status	ERROR

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Policy Management

Approvals are defined by a group of authorizing entities, of which a minimal-size subset (called a quorum) is required to approve the transaction. M approvals from a set of N entities is known as "MofN". For example, the client may define 8 entities, of which 4 must approve the transaction. Another example is where there must be 3 approvals from group A and 2 approvals from group B.

The number of groups, size of groups, and the size of the approving subset is fully flexible and can be different for each client. Every vault has an MofN policy associated with it, which is defined prior to the vault generation.

Add vault member

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{id}/members',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/vaults/{id}/members \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /casp/api/v1.0/mng/vaults/{id}/members

Add participant to an existing vault group

This API is used if a participant becomes unavailable or leaves an account and needs to be replaced with a new participant. A new participant may be added to an existing vault, but requires the approval of the existing vault quorum.

Body parameter

{
  "participantID": "string",
  "groupName": "string",
  "description": "string"
}

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Vault ID
body	body	object	true	Add vault group participant request
» participantID	body	string	true	Participant ID
» groupName	body	string	true	Vault group name
» description	body	string	false	Description

Example responses

200 Response

{
  "operationID": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Item not found	Inline
405	Method Not Allowed	Not allowed	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Add participant failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» operationID	string	true	none	Operation ID

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 405

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Deactivate a vault member

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{id}/members/{participantid}',
  method: 'put',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X PUT /casp/api/v1.0/mng/vaults/{id}/members/{participantid} \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

PUT /casp/api/v1.0/mng/vaults/{id}/members/{participantid}

Deactivate a participant for a specific vault

The deactivated participant no longer takes part in the vault transaction approval processes

Body parameter

{
  "status": "ACTIVATED"
}

Parameters

Parameter	In	Type	Required	Description
participantid	path	string	true	Participant ID
id	path	string	true	vault ID
body	body	object	true	Participant status update request
» status	body	string	true	Participant status

Enumerated Values

Parameter	Value
» status	ACTIVATED
» status	DEACTIVATED

Example responses

403 Response

{
  "type": "string",
  "title": "string",
  "details": "string",
  "status": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	None
403	Forbidden	Deactivating this participant would make the vault not operational (too few active participants left)	Inline
404	Not Found	Participant not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Deactivate participant failed	Inline

Response Schema

Status Code 403

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status of add member operation

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/operations/addmember/{operationid}',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/operations/addmember/{operationid} \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/operations/addmember/{operationid}

Status of add member operation

Adding a new participant to a vault requires approval of the quorum. This request queries the status of such an asynchronous operation.

Parameters

Parameter	In	Type	Required	Description
operationid	path	string	true	Operation ID

Example responses

200 Response

{
  "operationID": "string",
  "kind": "CREATE_VAULT",
  "status": "PENDING",
  "statusText": "string",
  "createdAt": "string",
  "vaultID": "string",
  "description": "string",
  "vaultName": "string",
  "groupName": "string",
  "participantName": "string",
  "participantID": "string",
  "groups": [
    {
      "name": "string",
      "members": [
        {
          "approvedAt": "string",
          "id": "string",
          "isApproved": true,
          "name": "string",
          "status": "STARTED",
          "approvalGroupAccount": {
            "id": "string",
            "name": "string"
          },
          "label": "string",
          "isGlobal": true,
          "isActive": true
        }
      ],
      "requiredApprovals": 0,
      "order": 0,
      "deactivateAllowed": true
    }
  ],
  "isApproved": true,
  "accountID": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Operation not found	Inline
500	Internal Server Error	Get Operation status failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» operationID	string	true	none	Operation ID
» kind	string	true	none	Request kind
» status	string	true	none	Operation status
» statusText	string	true	none	Operation status text
» createdAt	string	true	none	Operation creation time
» vaultID	string	true	none	Vault ID
» description	string	true	none	Description of the operation
» vaultName	string	true	none	Vault name for the operation
» groupName	string	true	none	Group name to join
» participantName	string	true	none	Participant name
» participantID	string	true	none	Participant ID
» groups	[object]	true	none	Operation approval groups
»» name	string	true	none	Approval group name
»» members	[object]	true	none	A list of participants in the group
»»» approvedAt	string	true	none	Participant approval time
»»» id	string	true	none	Participant ID
»»» isApproved	boolean	true	none	Participant approval state
»»» name	string	true	none	Participant name
»»» status	string	true	none	Participant task status
»»» approvalGroupAccount	object	true	none	none
»»»» id	string	true	none	Account ID
»»»» name	string	true	none	Account name
»»» label	string	true	none	Participant label
»»» isGlobal	boolean	true	none	Participant global state
»»» isActive	boolean	true	none	none
»» requiredApprovals	integer(int32)	true	none	The number of group participants that need to give approval
»» order	integer(int32)	true	none	This field determines the order in which groups are prompted for approvals
»» deactivateAllowed	boolean	true	none	A group participant can be deactivated for this group
» isApproved	boolean	true	none	Approval state for the operation
» accountID	string	true	none	Account ID for the operation

Enumerated Values

Property	Value
kind	CREATE_VAULT
kind	ADD_MEMBER
kind	SIGN
status	PENDING
status	APPROVED
status	COMPLETED
status	DECLINED
status	CANCELED
status	FAILED
status	ERROR
status	STARTED
status	DONE
status	DECLINED

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Keychain Management

Some implementations require a higher level of anonymity, meaning that a key should only be used a minimal number of times before switching to a new key. To accomplish this goal, CASP provides keychains, known as hierarchical deterministic wallets (or "HD Wallets"). These keychains enable the creation of many keys for a single secret.

Working with the currency layer, CASP supports a specific hierarchy structure as defined in the BIP44 scheme. This scheme supports the following:

• Generating any number of sub-accounts within the same vault. You can use this approach for creating segregated accounts within the same vault.
• Generating many addresses for each sub-account.

This section describes the APIs for management of these keychains. If you require a different keychain structure, see the section on BYOW Keychain Management.

Add account per coin type

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/{coinType}/api/v1.0/vaults/{vaultId}/accounts',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /{coinType}/api/v1.0/vaults/{vaultId}/accounts \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /{coinType}/api/v1.0/vaults/{vaultId}/accounts

Add an account to a vault

Body parameter

{
  "accountName": "string"
}

Parameters

Parameter	In	Type	Required	Description
coinType	path	string	true	Coin type
vaultId	path	string	true	Vault ID
body	body	Create_an_accountBody	false	Add account request
» accountName	body	string	true	The account name

Example responses

200 Response

{
  "addresses": [
    "string"
  ],
  "balance": 0,
  "name": "string",
  "index": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	Withdrawal request accepted	Inline
400	Bad Request	Bad withdrawal request	Inline
403	Forbidden	Not allowed	Inline
404	Not Found	Missing data	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Withdrawal failed	Inline
503	Service Unavailable	CASP service is not available	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» addresses	[string]	true	none	Account's addresses
» balance	number(double)	true	none	Account's balance
» name	string	true	none	Account's name
» index	integer(int32)	true	none	Account's index

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 403

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 503

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Get account information

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/{coinType}/api/v1.0/vaults/{vaultId}/accounts/{accountIdentifier}',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /{coinType}/api/v1.0/vaults/{vaultId}/accounts/{accountIdentifier} \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /{coinType}/api/v1.0/vaults/{vaultId}/accounts/{accountIdentifier}

Get the addresses and total balance of an account for a specific coin type

Parameters

Parameter	In	Type	Required	Description
coinType	path	string	true	Coin type
vaultId	path	string	true	Vault ID
accountIdentifier	path	string	true	Account index or account name
contractAddress	query	string	false	Contract Address (For use ETH-ERC20 coins only)

Example responses

200 Response

{
  "addresses": [
    "string"
  ],
  "balance": 0,
  "name": "string",
  "index": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	Account addresses and total balance	Inline
404	Not Found	Account not found	Inline
503	Service Unavailable	CASP service is not available	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» addresses	[string]	true	none	Account's addresses
» balance	number(double)	true	none	Account's balance
» name	string	true	none	Account's name
» index	integer(int32)	true	none	Account's index

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 503

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

List accounts per coin type

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/{coinType}/api/v1.0/vaults/{vaultId}/accounts',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /{coinType}/api/v1.0/vaults/{vaultId}/accounts \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /{coinType}/api/v1.0/vaults/{vaultId}/accounts

List all the accounts in a vault

Parameters

Parameter	In	Type	Required	Description
coinType	path	string	true	Coin type
vaultId	path	string	true	Vault ID

Example responses

200 Response

[
  {
    "name": "string",
    "index": 0
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	Withdrawal request accepted	Inline
400	Bad Request	Bad withdrawal request	Inline
403	Forbidden	Not allowed	Inline
404	Not Found	Missing data	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Withdrawal failed	Inline
503	Service Unavailable	CASP service is not available	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» name	string	false	none	an optional account name
» index	integer(int32)	true	none	the account's index

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 403

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

Status Code 503

Name	Type	Required	Restrictions	Description
» type	string	false	none	none
» title	string	false	none	none
» details	string	false	none	none
» status	integer(int64)	false	none	none

BYOW Vault Operations

A vault is a secure container for the cryptographic material used to protect a crypto asset, such as the seed or private key. CASP uses Multiparty Computation (MPC) to split the crypto material between the different participants in the vault, which ensures that the material never exists in a single place. In addition, only the approved set of participants can complete a transaction based on the vault definition.

A Quorum vault shares the responsibility of executing a transaction between many different participants in a structure defined by the vault policy. The vault policy contains a quorum-based structure where there are any number of groups, any threshold value per group, any tree structure between different groups, etc. The MPC protocols used by CASP ensure that if and only if the quorum definition is satisfied, a transaction can take place, which is enforced on the cryptographic level.

These APIs provide added parameters that enable you to handle your own coin type.

Create new vault

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/accounts/{id}/vaults',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/accounts/{id}/vaults \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /casp/api/v1.0/mng/accounts/{id}/vaults

Create new vault

This request starts the process of creating a new vault. The vault is created only after the participants approve the vault creation according to the vault policy.

Body parameter

{
  "name": "string",
  "description": "string",
  "groups": [
    {
      "name": "string",
      "requiredApprovals": 0,
      "members": [
        {
          "id": "string"
        }
      ]
    }
  ],
  "cryptoKind": "ECDSA",
  "providerKind": "string",
  "hierarchy": "NONE",
  "coinType": 0,
  "firstAccountName": "string",
  "additionalData": "string"
}

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Account ID
body	body	object	true	Create Vault Request
» name	body	string	true	Vault name
» description	body	string	true	Vault description
» groups	body	[object]	true	Vault approval groups
»» name	body	string	true	Vault group name
»» requiredApprovals	body	integer(int32)	true	Vault group required approvals
»» members	body	[object]	true	Vault group participants
»»» id	body	string	true	Participant ID
»» cryptoKind	body	string	true	Type of cryptographic algorithm
»» providerKind	body	string	true	Type of crypto currency
»» hierarchy	body	string	false	Vault hierarchy. defaults to deterministic
»» coinType	body	integer(int32)	false	optional BIP44 coin type. see examples in https://github.com/satoshilabs/slips/blob/master/slip-0044.md
»» firstAccountName	body	string	false	The name of the first account
»» additionalData	body	string	false	Some additional data about the vault, in string form, that can be stored in CASP

Enumerated Values

Parameter	Value
»» cryptoKind	ECDSA
»» cryptoKind	EDDSA
»» hierarchy	NONE
»» hierarchy	BIP32
»» hierarchy	BIP44

Example responses

201 Response

{
  "id": "string",
  "name": "string",
  "description": "string",
  "accountID": "string"
}

Responses

Status	Meaning	Description	Schema
201	Created	New vault created successfully, waiting for participant approval	Inline
400	Bad Request	Bad Request	Inline
404	Not Found	Missing data	Inline
409	Conflict	Vault name already exists	Inline
500	Internal Server Error	Create vault failed	Inline

Response Schema

Status Code 201

Name	Type	Required	Restrictions	Description
» id	string	true	none	Vault ID
» name	string	true	none	Vault name
» description	string	true	none	Vault description
» accountID	string	true	none	Vault account ID

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 409

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

List vaults per account

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/accounts/{id}/vaults',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/accounts/{id}/vaults \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/accounts/{id}/vaults

List vaults per account

List all vaults in the account. By default only active vaults are listed.

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Account ID
withDeactivated	query	boolean	false	Include deactivated vaults
providerKind	query	string	false	Filter by coin type

Example responses

200 Response

[
  {
    "id": "string",
    "name": "string",
    "description": "string",
    "cryptoKind": "ECDSA",
    "providerKind": "string",
    "kind": "QUORUM",
    "isActive": true,
    "status": "NOT_INITIALIZED",
    "statusText": "string",
    "providerData": "string",
    "pendingRequests": 0,
    "hierarchy": "NONE",
    "additionalData": "string"
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Account not found	Inline
500	Internal Server Error	List vaults per account failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» id	string	true	none	Vault ID
» name	string	true	none	Vault name
» description	string	true	none	Vault description
» cryptoKind	string	false	none	Type of cryptographic algorithm
» providerKind	string	false	none	Coin type that created the vault
» kind	string	true	none	Type of vault
» isActive	boolean	true	none	Vault active state
» status	string	true	none	Vault status
» statusText	string	true	none	Vault status text
» providerData	string	true	none	This is a field that can be used to store information in the CASP database. The information can subsequently be read back as needed.
» pendingRequests	integer(int64)	true	none	Vault pending requests
» hierarchy	string	true	none	Vault status text
» additionalData	string	false	none	Some additional data, in String form, that was specified when the vault was created

Enumerated Values

Property	Value
cryptoKind	ECDSA
cryptoKind	EDDSA
kind	QUORUM
kind	PRIVATE
status	NOT_INITIALIZED
status	INITIALIZED
status	DEACTIVATED
hierarchy	NONE
hierarchy	BIP32
hierarchy	BIP44

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Get BYOW vault info

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{id}',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/vaults/{id} \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/vaults/{id}

Get BYOW vault info

Get details of a vault

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Vault ID

Example responses

200 Response

{
  "description": "string",
  "groups": [
    {
      "name": "string",
      "members": [
        {
          "approvedAt": "string",
          "id": "string",
          "isApproved": true,
          "name": "string",
          "status": "STARTED",
          "approvalGroupAccount": {
            "id": "string",
            "name": "string"
          },
          "label": "string",
          "isGlobal": true,
          "isActive": true
        }
      ],
      "requiredApprovals": 0,
      "order": 0,
      "deactivateAllowed": true
    }
  ],
  "id": "string",
  "name": "string",
  "accountID": "string",
  "status": "NOT_INITIALIZED",
  "statusText": "string",
  "kind": "QUORUM",
  "cryptoKind": "ECDSA",
  "providerKind": "string",
  "providerData": "string",
  "hierarchy": "string",
  "additionalData": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Vault not found	Inline
500	Internal Server Error	Get vault details failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» description	string	true	none	Vault description
» groups	[object]	true	none	Vault approval groups
»» name	string	true	none	Approval group name
»» members	[object]	true	none	A list of participants in the group
»»» approvedAt	string	true	none	Participant approval time
»»» id	string	true	none	Participant ID
»»» isApproved	boolean	true	none	Participant approval state
»»» name	string	true	none	Participant name
»»» status	string	true	none	Participant task status
»»» approvalGroupAccount	object	true	none	none
»»»» id	string	true	none	Account ID
»»»» name	string	true	none	Account name
»»» label	string	true	none	Participant label
»»» isGlobal	boolean	true	none	Participant global state
»»» isActive	boolean	true	none	none
»» requiredApprovals	integer(int32)	true	none	The number of group participants that need to give approval
»» order	integer(int32)	true	none	This field determines the order in which groups are prompted for approvals
»» deactivateAllowed	boolean	true	none	A group participant can be deactivated for this group
» id	string	true	none	Vault ID
» name	string	true	none	Vault name
» accountID	string	true	none	Vault account ID
» status	string	true	none	Vault textual status
» statusText	string	true	none	Vault status text
» kind	string	true	none	Type of vault
» cryptoKind	string	false	none	Type of cryptographic algorithm
» providerKind	string	false	none	Coin type that created the vault
» providerData	string	true	none	This is a field that can be used to store information in the CASP database. The information can subsequently be read back as needed.
» hierarchy	string	true	none	Vault hierarchy
» additionalData	string	false	none	Some additional data, in String form, that was specified when the vault was created

Enumerated Values

Property	Value
status	STARTED
status	DONE
status	DECLINED
status	NOT_INITIALIZED
status	INITIALIZED
status	DEACTIVATED
kind	QUORUM
kind	PRIVATE
cryptoKind	ECDSA
cryptoKind	EDDSA

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Create an address

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIndex}/chains/{chain}/addresses',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIndex}/chains/{chain}/addresses \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIndex}/chains/{chain}/addresses

Create a new address

Parameters

Parameter	In	Type	Required	Description
vaultId	path	string	true	Vault ID
coinType	path	integer(int32)	true	Coin type
accountIndex	path	integer(int32)	true	Account index
chain	path	string	true	Add vault group member request

Enumerated Values

Parameter	Value
chain	change
chain	external

Example responses

200 Response

{
  "publicKey": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
400	Bad Request	Bad request	Inline
404	Not Found	Item not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Add participant failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» publicKey	string	true	none	The public key of the new address

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Start a signing process

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{id}/sign',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/vaults/{id}/sign \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /casp/api/v1.0/mng/vaults/{id}/sign

Start a vault signing process

Starts the process of a signing operation.

• For a quorum vault, the operation finishes when the minimum number of participants approve the transaction signing operation.

You can check the task status by calling the /operations API. When the signature is ready it is provided in the response payload.

This service should be used when the blockchain management is done outside of CASP, as it only signs the transaction without sending it to the relevant blockchain.

Body parameter

{
  "dataToSign": [
    "string"
  ],
  "publicKeys": [
    "string"
  ],
  "description": "string",
  "providerData": "string",
  "details": "string",
  "callbackUrl": "string",
  "rawTransactions": [
    "string"
  ],
  "ledgerHashAlgorithm": "NONE"
}

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Vault ID
body	body	object	true	Sign Request
» dataToSign	body	[string]	true	Data to be signed
» publicKeys	body	[string]	true	none
» description	body	string	true	Description of the sign request
» providerData	body	string	false	This is a field that can be used to store information in the CASP database. The information can subsequently be read back as needed.
» details	body	string	false	This is a field that can be used to store formatted operation information in the CASP database. The information can subsequently be sent to the end point for display
» callbackUrl	body	string	false	URL to get back to task initiator
» rawTransactions	body	[string]	false	An array of raw transaction strings that are sent to ledger.
» ledgerHashAlgorithm	body	string	false	Algorithm used to create data to sign

Detailed descriptions

» rawTransactions: An array of raw transaction strings that are sent to ledger. The strings must all have the same format, where the format of the strings depends on the ledger’s hash algorithm:

• For SHA256, it is a hex encoded string.
• For NONE it is a base64 string.

Enumerated Values

Parameter	Value
» ledgerHashAlgorithm	NONE
» ledgerHashAlgorithm	SHA256

Example responses

200 Response

{
  "operationID": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	Sign request accepted	Inline
400	Bad Request	Bad request	Inline
403	Forbidden	Not allowed	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Sign failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» operationID	string	true	none	Operation ID

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 403

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Get sign metadata

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/operations/sign/{operationid}',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/operations/sign/{operationid} \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/operations/sign/{operationid}

Get sign metadata

Returns the sign operation metadata

Parameters

Parameter	In	Type	Required	Description
operationid	path	string	true	Operation ID

Example responses

200 Response

{
  "operationID": "string",
  "status": "PENDING",
  "statusText": "string",
  "createdAt": "string",
  "vaultID": "string",
  "description": "string",
  "publicKeys": [
    "string"
  ],
  "dataToSign": [
    "string"
  ],
  "signatures": [
    "string"
  ],
  "v": [
    0
  ],
  "providerData": "string",
  "details": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Operation not found	Inline
500	Internal Server Error	Get Operation status failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» operationID	string	true	none	Operation ID
» status	string	true	none	Operation status
» statusText	string	true	none	Operation status text
» createdAt	string	true	none	Operation creation time
» vaultID	string	true	none	Vault ID
» description	string	true	none	Description of the operation
» publicKeys	[string]	true	none	the public corresponding to the private keys that will sign teh data
» dataToSign	[string]	true	none	List data to sign
» signatures	[string]	true	none	Signatures
» v	[integer]	true	none	the recovery code
» providerData	string	true	none	This is a field that can be used to store information in the CASP database. The information can subsequently be read back as needed.
» details	string	true	none	This is a field that can be used to store formatted operation information in the CASP database. The information can subsequently be sent to the end point for display

Enumerated Values

Property	Value
status	PENDING
status	APPROVED
status	COMPLETED
status	DECLINED
status	CANCELED
status	FAILED
status	ERROR

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

List BYOW operations

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/accounts/{id}/operations',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/accounts/{id}/operations \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/accounts/{id}/operations

List BYOW operations

List operations associated with account vaults. By default, only operations which are in process (not completed) will be returned.

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Account ID
withCompleted	query	boolean	false	Include completed operations
onlyApproved	query	boolean	false	Show only approved operations

Example responses

200 Response

[
  {
    "operationID": "string",
    "kind": "CREATE_VAULT",
    "status": "PENDING",
    "statusText": "string",
    "createdAt": "string",
    "vaultID": "string",
    "description": "string"
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
500	Internal Server Error	List BYOW operations failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» operationID	string	true	none	Operation ID
» kind	string	true	none	Request kind
» status	string	true	none	Operation status
» statusText	string	true	none	Operation status text
» createdAt	string	true	none	Operation creation time
» vaultID	string	true	none	Vault ID
» description	string	true	none	Description of the operation

Enumerated Values

Property	Value
kind	CREATE_VAULT
kind	ADD_MEMBER
kind	SIGN
status	PENDING
status	APPROVED
status	COMPLETED
status	DECLINED
status	CANCELED
status	FAILED
status	ERROR

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

List sub account operations

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIdentifier}/operations',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIdentifier}/operations \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIdentifier}/operations

List sub account operations

Parameters

Parameter	In	Type	Required	Description
vaultId	path	string	true	Vault ID
coinType	path	integer(int32)	true	Coin type
accountIdentifier	path	string	true	Account identifier, which can be the index or the name

Example responses

200 Response

[
  {
    "operationID": "string",
    "kind": "CREATE_VAULT",
    "status": "PENDING",
    "statusText": "string",
    "createdAt": "string",
    "vaultID": "string",
    "description": "string"
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
500	Internal Server Error	List sub account operations failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» operationID	string	true	none	Operation ID
» kind	string	true	none	Request kind
» status	string	true	none	Operation status
» statusText	string	true	none	Operation status text
» createdAt	string	true	none	Operation creation time
» vaultID	string	true	none	Vault ID
» description	string	true	none	Description of the operation

Enumerated Values

Property	Value
kind	CREATE_VAULT
kind	ADD_MEMBER
kind	SIGN
status	PENDING
status	APPROVED
status	COMPLETED
status	DECLINED
status	CANCELED
status	FAILED
status	ERROR

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Get BYOW operation status

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/operations/{operationid}',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/operations/{operationid} \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/operations/{operationid}

Get BYOW operation status

Quorum vault operations require approval of the quorum. This request queries the status of such an asynchronous operation.

Parameters

Parameter	In	Type	Required	Description
operationid	path	string	true	Operation ID

Example responses

200 Response

{
  "operationID": "string",
  "kind": "CREATE_VAULT",
  "status": "PENDING",
  "statusText": "string",
  "createdAt": "string",
  "vaultID": "string",
  "description": "string",
  "groups": [
    {
      "name": "string",
      "members": [
        {
          "approvedAt": "string",
          "id": "string",
          "isApproved": true,
          "name": "string",
          "status": "STARTED",
          "approvalGroupAccount": {
            "id": "string",
            "name": "string"
          },
          "label": "string",
          "isGlobal": true,
          "isActive": true
        }
      ],
      "requiredApprovals": 0,
      "order": 0,
      "deactivateAllowed": true
    }
  ],
  "isApproved": true,
  "accountID": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Operation not found	Inline
500	Internal Server Error	Get Operation status failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» operationID	string	true	none	Operation ID
» kind	string	true	none	Request kind
» status	string	true	none	Operation status
» statusText	string	true	none	Operation status text
» createdAt	string	true	none	Operation creation time
» vaultID	string	true	none	Vault ID
» description	string	true	none	Description of the operation
» groups	[object]	true	none	Operation approval groups
»» name	string	true	none	Approval group name
»» members	[object]	true	none	A list of participants in the group
»»» approvedAt	string	true	none	Participant approval time
»»» id	string	true	none	Participant ID
»»» isApproved	boolean	true	none	Participant approval state
»»» name	string	true	none	Participant name
»»» status	string	true	none	Participant task status
»»» approvalGroupAccount	object	true	none	none
»»»» id	string	true	none	Account ID
»»»» name	string	true	none	Account name
»»» label	string	true	none	Participant label
»»» isGlobal	boolean	true	none	Participant global state
»»» isActive	boolean	true	none	none
»» requiredApprovals	integer(int32)	true	none	The number of group participants that need to give approval
»» order	integer(int32)	true	none	This field determines the order in which groups are prompted for approvals
»» deactivateAllowed	boolean	true	none	A group participant can be deactivated for this group
» isApproved	boolean	true	none	Approval state for the operation
» accountID	string	true	none	Account ID for the operation

Enumerated Values

Property	Value
kind	CREATE_VAULT
kind	ADD_MEMBER
kind	SIGN
status	PENDING
status	APPROVED
status	COMPLETED
status	DECLINED
status	CANCELED
status	FAILED
status	ERROR
status	STARTED
status	DONE
status	DECLINED

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Cancel pending operation

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/operations/{operationid}/cancel',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/operations/{operationid}/cancel \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /casp/api/v1.0/mng/operations/{operationid}/cancel

Cancel pending operation

Parameters

Parameter	In	Type	Required	Description
operationid	path	string	true	Operation ID

Example responses

404 Response

{
  "type": "string",
  "title": "string",
  "details": "string",
  "status": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	None
404	Not Found	Operation not found	Inline
409	Conflict	Operation on running	Inline
500	Internal Server Error	Cancel pending operation failed	Inline

Response Schema

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 409

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

BYOW Policy Management

Approvals are defined by a group of authorizing entities, of which a minimal-size subset (called a quorum) is required to approve the transaction. M approvals from a set of N entities is known as "MofN". For example, the client may define 8 entities, of which 4 must approve the transaction. Another example is where there must be 3 approvals from group A and 2 approvals from group B.

The number of groups, size of groups, and the size of the approving subset is fully flexible and can be different for each client. Every vault has an MofN policy associated with it, which is defined prior to the vault generation.

Add member to vault

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{id}/members',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/vaults/{id}/members \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /casp/api/v1.0/mng/vaults/{id}/members

Add participant to an existing vault group

This API is used if a participant becomes unavailable or leaves an account and needs to be replaced with a new participant. A new participant may be added to an existing vault, but requires the approval of the existing vault quorum.

Body parameter

{
  "participantID": "string",
  "groupName": "string",
  "description": "string"
}

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Vault ID
body	body	object	true	Add vault group participant request
» participantID	body	string	true	Participant ID
» groupName	body	string	true	Vault group name
» description	body	string	false	Description

Example responses

200 Response

{
  "operationID": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Item not found	Inline
405	Method Not Allowed	Not allowed	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Add participant failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» operationID	string	true	none	Operation ID

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 405

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Deactivate vault member

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{id}/members/{participantid}',
  method: 'put',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X PUT /casp/api/v1.0/mng/vaults/{id}/members/{participantid} \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

PUT /casp/api/v1.0/mng/vaults/{id}/members/{participantid}

Deactivate a participant for a specific vault

The deactivated participant no longer takes part in the vault transaction approval processes

Body parameter

{
  "status": "ACTIVATED"
}

Parameters

Parameter	In	Type	Required	Description
participantid	path	string	true	Participant ID
id	path	string	true	vault ID
body	body	object	true	Participant status update request
» status	body	string	true	Participant status

Enumerated Values

Parameter	Value
» status	ACTIVATED
» status	DEACTIVATED

Example responses

403 Response

{
  "type": "string",
  "title": "string",
  "details": "string",
  "status": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	None
403	Forbidden	Deactivating this participant would make the vault not operational (too few active participants left)	Inline
404	Not Found	Participant not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Deactivate participant failed	Inline

Response Schema

Status Code 403

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

BYOW Keychain Management

Some implementations require a higher level of anonymity, meaning that a key should only be used a minimal number of times before switching to a new key. To accomplish this goal, CASP provides keychains, known as hierarchical deterministic wallets (or "HD Wallets"). Working with the CASP layer allows you to build any hierarchy of your choice. These keychains enable the creation of many keys for a single secret.

This section describes the APIs that enable you to create a different keychain structure to support your own coin type.

Add coin type to a vault

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{id}/coins',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/vaults/{id}/coins \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /casp/api/v1.0/mng/vaults/{id}/coins

Add a coin type to a vault

Body parameter

{
  "coinType": 0
}

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Vault ID
body	body	object	true	Add vault group participant request
» coinType	body	integer(int32)	true	The coin type

Example responses

404 Response

{
  "type": "string",
  "title": "string",
  "details": "string",
  "status": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	None
404	Not Found	Item not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Add participant failed	Inline

Response Schema

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

List coins in a vault

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{id}/coins',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/vaults/{id}/coins \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/vaults/{id}/coins

List all the coins in a vault

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Vault ID

Example responses

200 Response

{
  "coins": [
    0
  ]
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Item not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Add participant failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» coins	[integer]	true	none	none

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Get vault public key

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{vaultId}/publickey',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/vaults/{vaultId}/publickey \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/vaults/{vaultId}/publickey

Returns a deterministic vault's public key

Parameters

Parameter	In	Type	Required	Description
vaultId	path	string	true	Vault ID

Example responses

200 Response

{
  "publicKey": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
400	Bad Request	Request incorrectly formed	Inline
404	Not Found	Item not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Add participant failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» publicKey	string	true	none	Vault's public key

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Create an account

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts

Add an account to a coin in a vault

Body parameter

{
  "accountName": "string"
}

Parameters

Parameter	In	Type	Required	Description
vaultId	path	string	true	Vault ID
coinType	path	integer(int32)	true	Coin type
body	body	Create_an_accountBody	false	Add account request
» accountName	body	string	true	The account name

Example responses

200 Response

{
  "publicKeys": [
    "string"
  ],
  "accountName": "string",
  "accountIndex": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
400	Bad Request	Bad Request	Inline
404	Not Found	Item not found	Inline
405	Method Not Allowed	Vault hierarchy is not BIP 44	Inline
409	Conflict	Account name already exists	Inline
500	Internal Server Error	Add participant failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» publicKeys	[string]	true	none	the public keys
» accountName	string	false	none	the account's name
» accountIndex	integer(int32)	true	none	the account's index

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 405

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 409

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

List accounts in a vault

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts

List all the accounts in a vault for a given coin

Parameters

Parameter	In	Type	Required	Description
vaultId	path	string	true	Vault ID
coinType	path	integer(int32)	true	Coin type

Example responses

200 Response

[
  {
    "name": "string",
    "index": 0
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Item not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Add participant failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» name	string	false	none	an optional account name
» index	integer(int32)	true	none	the account's index

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Find account index by name

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/find',
  method: 'get',
  data: '?accountName=string',
  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/find?accountName=string \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/find

Find account index by name

Parameters

Parameter	In	Type	Required	Description
vaultId	path	string	true	Vault ID
coinType	path	integer(int32)	true	Coin type
accountName	query	string	true	Account name

Example responses

200 Response

{
  "index": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Account index not found	Inline
500	Internal Server Error	find account index failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» index	integer(int32)	true	none	The account index

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Get account by identifier

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIdentifier}',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIdentifier} \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIdentifier}

Get detailed information, including the public keys, about a vault for a given coin type and account index.

Parameters

Parameter	In	Type	Required	Description
vaultId	path	string	true	Vault ID
coinType	path	integer(int32)	true	Coin type
accountIdentifier	path	string	true	Account identifier, which can be the index or the name

Example responses

200 Response

{
  "publicKeys": [
    "string"
  ],
  "accountName": "string",
  "accountIndex": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
400	Bad Request	Request incorrectly formed	Inline
404	Not Found	Item not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Add participant failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» publicKeys	[string]	true	none	the public keys
» accountName	string	false	none	the account's name
» accountIndex	integer(int32)	true	none	the account's index

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

List chain addresses

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIndex}/chains/{chain}/addresses',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIndex}/chains/{chain}/addresses \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIndex}/chains/{chain}/addresses

List all the public keys for addresses in a vault for a given coin type, account index and address chain type

Parameters

Parameter	In	Type	Required	Description
vaultId	path	string	true	Vault ID
coinType	path	integer(int32)	true	Coin type
accountIndex	path	integer(int32)	true	Account index
chain	path	string	true	Add vault group participant request

Enumerated Values

Parameter	Value
chain	change
chain	external

Example responses

200 Response

{
  "publicKeys": [
    "string"
  ],
  "accountName": "string",
  "accountIndex": 0
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
400	Bad Request	Request incorrectly formed	Inline
404	Not Found	Item not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Add participant failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» publicKeys	[string]	true	none	the public keys
» accountName	string	false	none	the account's name
» accountIndex	integer(int32)	true	none	the account's index

Status Code 400

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Get BYOW account backup

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIdentifier}/backup',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIdentifier}/backup \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIdentifier}/backup

Get backup for BIP44 account

Parameters

Parameter	In	Type	Required	Description
vaultId	path	string	true	Vault ID
coinType	path	integer(int32)	true	Coin type
accountIdentifier	path	string	true	Account identifier, which can be the index or the name

Example responses

200 Response

{
  "backupData": "string",
  "bipLevel": 0,
  "cpar": "string",
  "parentFingerprint": 0,
  "childNumber": 0,
  "publicKey": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Vault not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Get account backup failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» backupData	string	true	none	the bip44 account private key, in an encrypted form
» bipLevel	integer(int32)	true	none	the account bip level, should always be 3
» cpar	string	true	none	the CPar
» parentFingerprint	integer(int32)	true	none	parent fingerprint
» childNumber	integer(int32)	true	none	child number
» publicKey	string	false	none	none

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Derive a key in a vault

Code samples

var headers = {
  'Content-Type':'application/json',
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{vaultId}/derivations',
  method: 'post',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X POST /casp/api/v1.0/mng/vaults/{vaultId}/derivations \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

POST /casp/api/v1.0/mng/vaults/{vaultId}/derivations

Derive a key in a vault

Body parameter

{
  "pathToDeriveFrom": "string",
  "hardDerivation": true,
  "childIndex": 0
}

Parameters

Parameter	In	Type	Required	Description
vaultId	path	string	true	Vault ID
body	body	object	false	Derive a keypair in a vault
» pathToDeriveFrom	body	string	true	The derivation path
» hardDerivation	body	boolean	true	Use hard derivation
» childIndex	body	integer(int32)	true	The child index

Example responses

200 Response

{
  "derivationPath": "string",
  "publicKey": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Item not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Add participant failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» derivationPath	string	true	none	the public derivation path
» publicKey	string	true	none	the public key

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

List all keys in a vault

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{vaultId}/derivations',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/vaults/{vaultId}/derivations \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/vaults/{vaultId}/derivations

List all keys in a vault

Parameters

Parameter	In	Type	Required	Description
vaultId	path	string	true	Vault ID

Example responses

200 Response

[
  {
    "derivationPath": "string",
    "publicKey": "string"
  }
]

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Item not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Add participant failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» derivationPath	string	true	none	the public derivation path
» publicKey	string	true	none	the public key

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Get public key by derivation path

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{vaultId}/derivation',
  method: 'get',
  data: '?derivationPath=string',
  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/vaults/{vaultId}/derivation?derivationPath=string \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/vaults/{vaultId}/derivation

Get public key by derivation path

Parameters

Parameter	In	Type	Required	Description
vaultId	path	string	true	Vault ID
derivationPath	query	string	true	Derivation path

Example responses

200 Response

{
  "derivationPath": "string",
  "publicKey": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Item not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Get derivation failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» derivationPath	string	true	none	the public derivation path
» publicKey	string	true	none	the public key

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Get backup data for public key

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{vaultId}/backup/{publicKey}',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/vaults/{vaultId}/backup/{publicKey} \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/vaults/{vaultId}/backup/{publicKey}

Get backup data for public key

The vault cryptographic material is backed up with a key that is external to the CASP system. The backup can be used for safe recovery of the vault in case of service failure, participants losing their shares, or termination of CASP usage.

Parameters

Parameter	In	Type	Required	Description
vaultId	path	string	true	Vault ID
publicKey	path	string	true	public key

Example responses

200 Response

{
  "vaultID": "string",
  "backupData": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Vault not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Get vault backup data failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» vaultID	string	true	none	Vault ID
» backupData	string	true	none	Vault backup data

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Backup

CASP supports backing up key material and restoring the backup information for the different levels of the CASP entities: per vault, per sub-account (for HD wallets), and per specific address (for HD wallets).

When backing up a key (instead of backing up a vault seed), the CASP backup mechanism supports a publicly verifiable backup. Using only the backup public key, you can verify that the encrypted data is indeed the EC private key, which matches the known EC public key.

Get vault backup data

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{id}/backup',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/vaults/{id}/backup \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/vaults/{id}/backup

Get vault backup data

The vault cryptographic material is backed up with a key that is external to the CASP system. The backup can be used for safe recovery of the vault in case of service failure, participants losing their shares, or termination of CASP usage.

Parameters

Parameter	In	Type	Required	Description
id	path	string	true	Vault ID

Example responses

200 Response

{
  "vaultID": "string",
  "backupData": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Vault not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Get vault backup data failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» vaultID	string	true	none	Vault ID
» backupData	string	true	none	Vault backup data

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Get backup for account

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIdentifier}/backup',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIdentifier}/backup \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/vaults/{vaultId}/coins/{coinType}/accounts/{accountIdentifier}/backup

Get backup for BIP44 account

Parameters

Parameter	In	Type	Required	Description
vaultId	path	string	true	Vault ID
coinType	path	integer(int32)	true	Coin type
accountIdentifier	path	string	true	Account identifier, which can be the index or the name

Example responses

200 Response

{
  "backupData": "string",
  "bipLevel": 0,
  "cpar": "string",
  "parentFingerprint": 0,
  "childNumber": 0,
  "publicKey": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Vault not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Get account backup failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» backupData	string	true	none	the bip44 account private key, in an encrypted form
» bipLevel	integer(int32)	true	none	the account bip level, should always be 3
» cpar	string	true	none	the CPar
» parentFingerprint	integer(int32)	true	none	parent fingerprint
» childNumber	integer(int32)	true	none	child number
» publicKey	string	false	none	none

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Get public key backup data

Code samples

var headers = {
  'Accept':'application/json',
  'Authorization':'API_KEY'

};

$.ajax({
  url: '/casp/api/v1.0/mng/vaults/{vaultId}/backup/{publicKey}',
  method: 'get',

  headers: headers,
  success: function(data) {
    console.log(JSON.stringify(data));
  }
})

# You can also use wget
curl -X GET /casp/api/v1.0/mng/vaults/{vaultId}/backup/{publicKey} \
  -H 'Accept: application/json' \
  -H 'Authorization: API_KEY'

GET /casp/api/v1.0/mng/vaults/{vaultId}/backup/{publicKey}

Get public key backup data

The vault cryptographic material is backed up with a key that is external to the CASP system. The backup can be used for safe recovery of the vault in case of service failure, participants losing their shares, or termination of CASP usage.

Parameters

Parameter	In	Type	Required	Description
vaultId	path	string	true	Vault ID
publicKey	path	string	true	public key

Example responses

200 Response

{
  "vaultID": "string",
  "backupData": "string"
}

Responses

Status	Meaning	Description	Schema
200	OK	OK	Inline
404	Not Found	Vault not found	Inline
406	Not Acceptable	Not supported	Inline
500	Internal Server Error	Get vault backup data failed	Inline

Response Schema

Status Code 200

Name	Type	Required	Restrictions	Description
» vaultID	string	true	none	Vault ID
» backupData	string	true	none	Vault backup data

Status Code 404

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 406

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code

Status Code 500

Name	Type	Required	Restrictions	Description
» type	string	true	none	Error identification
» title	string	true	none	Error summary
» details	string	true	none	Error details
» status	integer(int64)	true	none	Original HTTP status code
